四象限双向可控硅

首页产品中心四象限双向可控硅

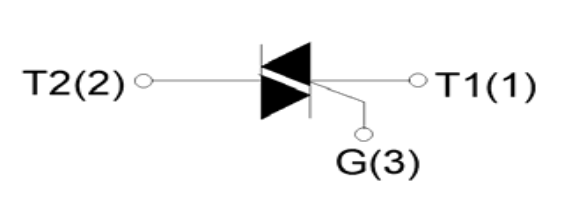

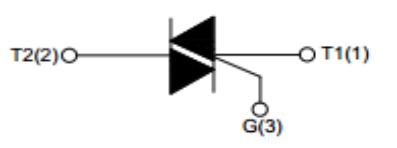

Type	Datasheet	Circuit	Marking	IT(RMS)	ITSM@50Hz	VDRM	VRRM	IGT(1-3)	TJ	Package
Type	Datasheet	Circuit	Marking	A	A	V	V	mA	℃	Package
重置全部	/	/	/	Reset OK	Reset OK	Reset OK	Reset OK	Reset OK	Reset OK	SOT-223 SOT-89 SOT223-2L SOT23-3L TO-126 TO-126P TO-220A TO-220AB TO-220B TO-220C TO-220F TO-252 TO-262 TO-263 TO-92 Reset
	/	/	/
BTB24			YFW BTB24	24	240	800	800	4	40	TO-220AB
BTB16T				16	160	800	800	25	25	TO-262
BT134C			YFW BT134C	2	22	800	800	15	125	TO-126P
BTA08-600C			YFW BTA08	8	80	600	600	25	125	TO-220A
BTA08-600B			YFW BTA08	8	80	600	600	25	125	TO-220A
BTA08-800C			YFW BTA08	8	84	800	800	50	125	TO-220A
BTA08-800B			YFW BTA08	8	84	800	800	50	125	TO-220A
BTB24-600			YFW BTB24	24	240	600	600	50	125	TO-220B
BTB24-800			YFW BTB24	24	240	800	800	50	125	TO-220B
BTA08F-600			YFW BTA08F	8	84	600	600	50	110	TO-220F
BTA08F-800			YFW BTA08F	8	80	800	800	50	110	TO-220F
MAC97A6SI			97A6	0.6	8	400	400	10	125	SOT-89
BTB12-600				12	120	600	600	25	125	TO-220B
BTB12-800				12	120	800	800	25	125	TO-220B
BT131G-600				1	16	600	600	5	125	TO-92
BT131G-800				1	16	800	800	5	125	TO-92
BT132G-600				2	16	600	600	5	125	TO-92
BT132G-800			BT132	2	16	800	800	5	125	TO-92
MAC97A6G			YFW MAC97A6	0.8	8	600	600	5	125	TO-92
MAC97A8G			YFW MAC97A8	0.8	8	800	800	5	125	TO-92
MAC97A6			97A6	0.8	8	600	600	5	125	SOT23-3L
BT131-600				1	16	600	600	5	125	SOT-223
BT131-800				1	16	800	800	5	125	SOT-223
BT131W-600				1	16	600	600	5	125	SOT223-2L
BT131W-800				1	16	800	800	5	125	SOT223-2L
Z0607NT				1	12	800	800	7	125	SOT223-2L
BT134W-600E				2	20	600	600	0.02	125	SOT-223
BT134W-800E				2	20	800	800	0.02	125	SOT-223
BT134-600E				4	25	600	600	10	125	TO-126
BT134-800E				4	25	800	800	10	125	TO-126
BT136-600D				4	25	600	600	5	125	TO-220C
BT136-800D				4	25	800	800	5	125	TO-220C
BT136-600E			YFW BT136 600E	4	25	600	600	10	125	TO-220C
BT136-800E			YFW BT136 800E	4	25	800	800	10	125	TO-220C
BT137-600D			YFW BT137-600D	8	65	600	600	5	125	TO-220C
BT137-800D				8	65	800	800	5	125	TO-220C
BT137-600E			BT137 600E	8	65	600	600	10	125	TO-220C
BT137-800E				8	65	800	800	10	125	TO-220C
BT137-600F				8	65	600	600	25	125	TO-220C
BT137-800F				8	65	800	800	25	125	TO-220C
BT138-600D				12	95	600	600	5	125	TO-220C
BT138-800D				12	95	800	800	5	125	TO-220C
BT138-600E				12	95	600	600	10	125	TO-220C
BT138-800E			BT138 800E	12	95	800	800	10	125	TO-220C
BT138-600F				12	95	600	600	25	125	TO-220C
BT138-800F				12	95	800	800	25	125	TO-220C
BT139-600E				16	140	600	600	10	125	TO-220C
BT139-800E			BT139-800	16	140	800	800	10	125	TO-220C
BTA04F-600E				4	40	600	600	35	125	TO-220F
BTA04F-800E				4	40	800	800	35	125	TO-220F
BT136F-600D				4	25	600	600	5	125	TO-220F
BT136F-800D				4	25	800	800	5	125	TO-220F
BT136F-600E			BT136 600E	4	25	600	600	10	125	TO-220F
BT136F-800E			YFW BT136 800E	4	25	800	800	10	125	TO-220F
BT139F-600D	/	/		16	150	600	600	15	125	TO-220F
BT139F-800D	/	/		16	150	800	800	15	125	TO-220F
BT139F-600E				16	150	600	600	25	125	TO-220F
BT139F-800E			YFW BT139 800E	16	150	800	800	25	125	TO-220F
BTA06A-600E				6	60	600	600	10	125	TO-220A
BTA06A-600D				6	60	600	600	25	125	TO-220A
BTA06A-600C				6	60	600	600	50	125	TO-220A
BTA06A-800E				6	60	800	800	10	125	TO-220A
BTA06A-800D				6	60	800	800	25	125	TO-220A
BTA06A-800C				6	60	800	800	50	125	TO-220A
BTA12-600E				12	120	600	600	10	125	TO-220A
BTA12-600C				12	120	600	600	25	125	TO-220A
BTA12-600B			YFW BTA12 600B	12	120	600	600	50	125	TO-220A
BTA12-800E				12	120	800	800	10	125	TO-220A
BTA12-800C				12	120	800	800	25	125	TO-220A
BTA12-800B			YFW BTA12 800BW	12	120	800	800	50	125	TO-220A
BTA16-600C			YFW BTA16.600C	16	160	600	600	25	125	TO-220A
BTA16-600B				16	160	600	600	50	125	TO-220A
BTA16-800C				16	160	800	800	25	125	TO-220A
BTA16-800B			BTA16 800B	16	160	800	800	50	125	TO-220A
BTA24-600C				24	240	600	600	50	125	TO-220A
BTA24-600B				24	240	600	600	120	125	TO-220A
BTA24-800C				24	240	800	800	50	125	TO-220A
BTA24-800B			YFW BTA24 800B	24	240	800	800	120	125	TO-220A
BTB16-600B				16	125	600	600	50	125	TO-220B
BTB16-800B			YFW BTB16 800B	16	125	800	800	50	125	TO-220B
BTB16-600C				16	125	600	600	25	125	TO-220B
BTB16-800C			BTB16 800C	16	125	800	800	25	125	TO-220B
BTB24-600B				24	240	600	600	120	125	TO-220B
BTB24-800B			BTB24 800B	24	240	800	800	120	125	TO-220B
BTB24-600C				24	240	600	600	50	125	TO-220B
BTB24-800C				24	240	800	800	50	125	TO-220B
BT136D-600E			BT136 600E	4	25	600	600	10	125	TO-252
BT136D-800E			YFW BT136 800E	4	25	800	800	10	125	TO-252
BT137D-600E			YFW BT137 600E	8	65	600	600	10	125	TO-252
BT137D-800E				8	65	800	800	10	125	TO-252
BT138D-600E				12	95	600	600	10	125	TO-252
BT138D-800E			YFW BT138 800E	12	95	800	800	10	125	TO-252
BT137Q-600E			YFW BT137 600E	8	65	600	600	10	125	TO-263
BT137Q-800E				8	65	800	800	10	125	TO-263
BT139Q-600D				16	140	600	600	5	125	TO-263
BT139Q-800D				16	140	800	800	5	125	TO-263
BT139Q-600E				16	140	600	600	10	125	TO-263
BT139Q-800E			BT139 800E	16	140	800	800	10	125	TO-263
BT139Q-600F				16	140	600	600	25	125	TO-263
BT139Q-800F				16	140	800	800	25	125	TO-263
BTB16Q-600C				16	160	600	600	50	125	TO-263
BTB16Q-800C			BTB16 800C	16	160	800	800	50	125	TO-263
