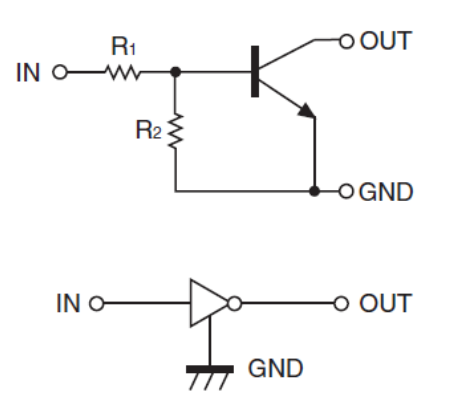

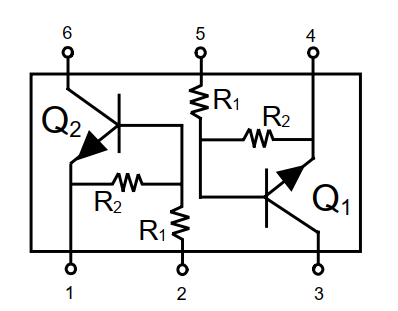

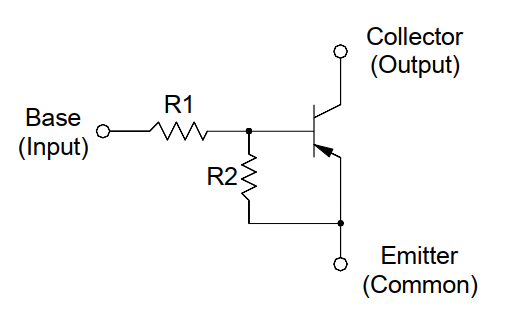

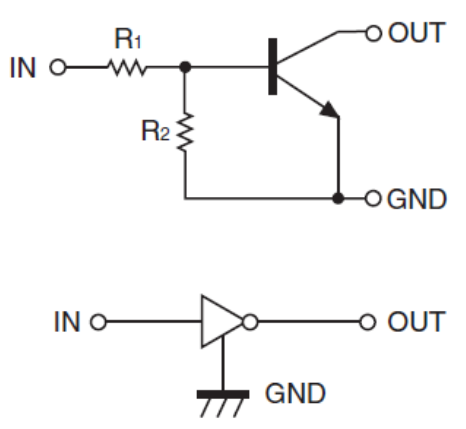

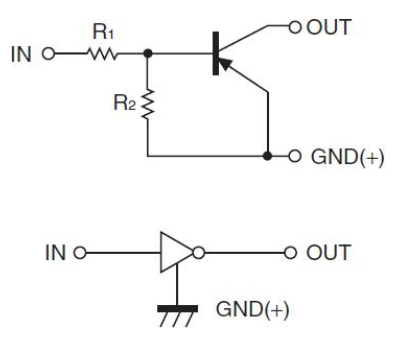

Type	Datasheet	Circuit	Marking	Polarity	PC	lo	VCC	Gi	Vo(on)	R1	R2	Ft	Package
Type	Datasheet	Circuit	Marking	Polarity	mW	mA	V	Gi	V	(Ω)	(Ω)	MHz	Package
重置全部	/	/	/	NPN NPN+NPN NPN+PNP PNP Reset	Reset OK	Reset OK	Reset OK	Reset OK	Reset OK	0 1 10 100 15.4 2.2 22 3.29 32.9 4.7 47 61.1 7 Reset	0 0.047 0.213 1 1.2 10 100 13 2.1 2.2 21 22 28.6 4.5 4.7 47 6.11 61.1 Reset	Reset OK	SOT-23 SOT-323 SOT-363 SOT-523 SOT-723 SOT23-3L TO-126 Reset
	/	/	/
BD681	/	/	BD681	NPN	40000	400	100	750	2.5	0	0	250	TO-126
BD680A	/	/	BD680A	PNP	40000	400	-80	750	2.5	0	0	250	TO-126
BD680	/	/	BD680	PNP	40000	400	-80	750	2.5	0	0	250	TO-126
BD679A	/	/	BD679A	NPN	40000	400	80	750	2.5	0	0	250	TO-126
BD679	/	/	BD679	NPN	40000	400	80	750	2.5	0	0	250	TO-126
BD678A	/	/	BD678A	PNP	40000	400	-60	750	2.5	0	0	250	TO-126
BD678	/	/	BD678	PNP	40000	400	-60	750	2.5	0	0	250	TO-126
BD677A	/	/	BD677A	NPN	40000	400	60	750	2.5	0	0	250	TO-126
DTC124ECA	/	/	DTC124ECA	NPN	200	30	50	56	0.3	22	22	250	SOT-23
DTC144ECA	/	/	DTC144ECA	NPN	200	100	50	68	0.3	47	47	250	SOT-23
DTC115ECA	/	/	DTC115ECA	NPN	200	20	50	82	0.3	100	100	250	SOT-23
DTD113Z	/	/	G21	NPN	200	7.2	50	82	0.3	1	10	200	SOT-23
KRC101S	/	/	NA	NPN	200	100	50	30	0.3	4.7	4.7	200	SOT-23
KRC102S	/	/	NB	NPN	200	100	50	50	0.3	10	10	200	SOT-23
KRC103S	/	/	NC	NPN	200	100	50	70	0.3	22	22	200	SOT-23
KRC104S	/	/	ND	NPN	200	100	50	80	0.3	47	47	200	SOT-23
KRC105S	/	/	NF	NPN	200	100	50	80	0.3	2.2	47	200	SOT-23
KRC106S	/	/	NE	NPN	200	100	50	80	0.3	4.7	47	200	SOT-23
KRC107S	/	/	NH	NPN	200	100	50	80	0.3	10	47	200	SOT-23
KRC108S	/	/	NI	NPN	200	100	50	80	0.3	22	47	200	SOT-23
KRC109S	/	/	NJ	NPN	200	100	50	70	0.3	47	22	200	SOT-23
MMBTRC101SS	/	/	NA	NPN	200	100	50	30	0.3	4.7	4.7	200	SOT-23
MMBTRC102SS	/	/	NB	NPN	200	100	50	50	0.3	10	10	200	SOT-23
MMBTRC103SS	/	/	NC	NPN	200	100	50	70	0.3	22	22	200	SOT-23
MMBTRC104SS	/	/	ND	NPN	200	100	50	80	0.3	47	47	200	SOT-23
MMBTRC105SS	/	/	NF	NPN	200	100	50	80	0.3	2.2	47	200	SOT-23
MMBTRC106SS	/	/	NE	NPN	200	100	50	80	0.3	4.7	47	200	SOT-23
MMBTRC241SS	/	/	NQ	NPN	200	300	50	33	0.3	1	1	200	SOT-23
MMBTRC242SS	/	/	YP	NPN	200	300	50	39	0.3	2.2	2.2	200	SOT-23
MMBTRC243SS	/	/	HP	NPN	200	300	50	47	0.3	4.7	4.7	200	SOT-23
MMBTRC244SS	/	/	HN	NPN	200	300	50	56	0.3	10	10	200	SOT-23
MMBTRC245SS	/	/	NU	NPN	200	300	50	56	0.3	1	10	200	SOT-23
MMBTRC246SS	/	/	NV	NPN	200	300	50	56	0.3	2.2	10	200	SOT-23
MMUN2111	/	/	A6A	PNP	200	-100	-50	35	-0.2	10	10	200	SOT-23
MMUN2112	/	/	A6B	PNP	200	-100	-50	60	-0.2	22	22	200	SOT-23
MMUN2113	/	/	A6C	PNP	200	-100	-50	80	-0.2	47	47	200	SOT-23
MMUN2114	/	/	A6D	PNP	200	-100	-50	80	-0.2	10	47	200	SOT-23
MMUN2115	/	/	A6E	PNP	200	-100	-50	160	-0.2	10	0	200	SOT-23
MMUN2116	/	/	A6F	PNP	200	-100	-50	160	-0.2	4.7	0	200	SOT-23
MMUN2130	/	/	A6G	PNP	200	-100	-50	3	-0.2	1	1	200	SOT-23
MMUN2131	/	/	A6H	PNP	200	-100	-50	8	-0.2	2.2	2.2	200	SOT-23
MMUN2132	/	/	A6J	PNP	200	-100	-50	15	-0.2	4.7	4.7	200	SOT-23
MMUN2133	/	/	A6K	PNP	200	-100	-50	80	-0.2	4.7	47	200	SOT-23
MMUN2134	/	/	A6L	PNP	200	-100	-50	80	-0.2	22	47	200	SOT-23
MMUN2211	/	/	MMUN2211	NPN	200	100	50	35	0.2	10	10	200	SOT-23
MMUN2212	/	/	MMUN2212	NPN	200	100	50	60	0.2	22	22	200	SOT-23
MMUN2213	/	/	MMUN2213	NPN	200	100	50	80	0.2	47	47	200	SOT-23
MMUN2214	/	/	MMUN2214	NPN	200	100	50	80	0.2	10	47	200	SOT-23
MMUN2215	/	/	MMUN2215	NPN	200	100	50	160	0.2	10	0	200	SOT-23
MMUN2216	/	/	MMUN2216	NPN	200	100	50	160	0.2	4.7	0	200	SOT-23
MMUN2230	/	/	MMUN2230	NPN	200	100	50	3	0.2	1	1	200	SOT-23
MMUN2231	/	/	MMUN2231	NPN	200	100	50	8	0.2	2.2	2.2	200	SOT-23
MMUN2232	/	/	MMUN2232	NPN	200	100	50	15	0.2	4.7	4.7	200	SOT-23
MMUN2233	/	/	MMUN2233	NPN	200	100	50	80	0.2	4.7	47	200	SOT-23
MMUN2234	/	/	MMUN2234	NPN	200	100	50	80	0.2	22	47	200	SOT-23
MMUN2235	/	/	MMUN2235	NPN	200	100	50	80	0.2	2.2	47	200	SOT-23
MMUN2238	/	/	MMUN2238	NPN	200	100	50	160	0.2	2.2	0	200	SOT-23
MMUN2241	/	/	MMUN2241	NPN	200	100	50	160	0.2	100	0	200	SOT-23
MMDTX144DW	/	/	6H	NPN+PNP	200	100	50	80	1.8	10	0.213	200	SOT-363
MMDTX144DW	/	/	6H	NPN+PNP	200	-100	-50	80	-1.8	10	0.213	200	SOT-363
MMDTX237DW	/	/	D3	NPN+PNP	250	100	50	70	1.1	2.2	0.047	170	SOT-363
MMDTX237DW	/	/	D3	NPN+PNP	250	-100	-50	70	-1.1	2.2	0.047	170	SOT-363
MMDTX241DW	/	/	D2	NPN+PNP	200	100	50	70	3	22	1	200	SOT-363
MMDTX241DW	/	/	D2	NPN+PNP	200	-100	-50	70	-3	22	1	200	SOT-363
MMDTX441DW	/	/	D1	NPN+PNP	200	100	50	80	3	47	1	200	SOT-363
MMDTX441DW	/	/	D1	NPN+PNP	200	-100	-50	80	-3	47	1	200	SOT-363
MMUN5111DW	/	/	0A	PNP	200	-100	-50	60	-4.9	10	10	200	SOT-363
MMUN5112DW	/	/	0B	PNP	200	-100	-50	100	-4.9	22	22	200	SOT-363
MMUN5113DW	/	/	0C	PNP	200	-100	-50	140	-4.9	47	47	200	SOT-363
MMUN5114DW	/	/	0D	PNP	200	-100	-50	140	-4.9	10	47	200	SOT-363
MMUN5115DW	/	/	0E	PNP	200	-100	-50	250	-4.9	10	0	200	SOT-363
MMUN5116DW	/	/	0F	PNP	200	-100	-50	250	-4.9	4.7	0	200	SOT-363
MMUN5130DW	/	/	0G	PNP	200	-100	-50	5	-4.9	1	1	200	SOT-363
MMUN5131DW	/	/	0H	PNP	200	-100	-50	15	-4.9	2.2	2.2	200	SOT-363
MMUN5132DW	/	/	0J	PNP	200	-100	-50	27	-4.9	4.7	4.7	200	SOT-363
MMUN5133DW	/	/	0K	PNP	200	-100	-50	140	-4.9	4.7	4.7	200	SOT-363
MMUN5134DW	/	/	0L	PNP	200	-100	-50	130	-4.9	22	4.7	200	SOT-363
MMUN5135DW	/	/	0M	PNP	200	-100	-50	140	-4.9	2.2	4.7	200	SOT-363
MMUN5211DW	/	/	7A	NPN	250	100	50	35	4.9	10	10	200	SOT-363
MMUN5212DW	/	/	7B	NPN	250	100	50	60	4.9	22	22	200	SOT-363
MMUN5213DW	/	/	7C	NPN	250	100	50	80	4.9	47	47	200	SOT-363
MMUN5214DW	/	/	7D	NPN	250	100	50	80	4.9	10	47	200	SOT-363
MMUN5215DW	/	/	7E	NPN	250	100	50	160	4.9	10	0	200	SOT-363
MMUN5216DW	/	/	7F	NPN	250	100	50	160	4.9	4.7	0	200	SOT-363
MMUN5230DW	/	/	7G	NPN	250	100	50	3	4.9	1	1	200	SOT-363
MMUN5231DW	/	/	7H	NPN	250	100	50	8	4.9	2.2	2.2	200	SOT-363
MMUN5232DW	/	/	7J	NPN	250	100	50	15	4.9	4.7	4.7	200	SOT-363
MMUN5233DW	/	/	7K	NPN	250	100	50	80	4.9	4.7	4.7	200	SOT-363
MMUN5234DW	/	/	7L	NPN	250	100	50	80	4.9	22	47	200	SOT-363
MMUN5235DW	/	/	7M	NPN	250	100	50	80	4.9	2.2	47	200	SOT-363
MMUN5238DW	/	/	7Q	NPN	250	100	50	160	4.9	2.2	0	200	SOT-363
MMUN5241DW	/	/	7T	NPN	250	100	50	160	4.9	100	0	200	SOT-363
MMUN5311DW	/	/	11	NPN+PNP	250	100	50	60	4.9	10	10	200	SOT-363
MMUN5312DW	/	/	12	NPN+PNP	250	100	50	100	4.9	22	22	200	SOT-363
MMUN5313DW	/	/	13	NPN+PNP	250	100	50	140	4.9	47	47	200	SOT-363
MMUN5314DW	/	/	14	NPN+PNP	250	100	50	140	4.9	10	47	200	SOT-363
MMUN5315DW	/	/	15	NPN+PNP	250	100	50	350	4.9	10	0	200	SOT-363
MMUN5316DW	/	/	16	NPN+PNP	250	100	50	350	4.9	4.7	0	200	SOT-363
MMUN5330DW	/	/	30	NPN+PNP	250	100	50	5	4.9	1	1	200	SOT-363
MMUN5331DW	/	/	31	NPN+PNP	250	100	50	15	4.9	2.2	2.2	200	SOT-363
MMUN5332DW	/	/	32	NPN+PNP	250	100	50	30	4.9	4.7	4.7	200	SOT-363
MMUN5333DW	/	/	33	NPN+PNP	250	100	50	200	4.9	4.7	47	200	SOT-363
MMUN5334DW	/	/	34	NPN+PNP	250	100	50	150	4.9	22	47	200	SOT-363
MMUN5335DW	/	/	35	NPN+PNP	250	100	50	140	4.9	2.2	47	200	SOT-363
UMH2N	/	/	H2	NPN+NPN	150	100	50	68	0.3	61.1	1.2	250	SOT-363
DTA113ZE	/	/	E11	PNP	150	-100	-50	33	-0.3	1	10	250	SOT-523
DTA113ZUA	/	/	E11	PNP	200	-100	-50	33	-0.3	1	10	250	SOT-323
DTA113ZKA	/	/	E11	PNP	200	-100	-50	33	-0.3	1	10	250	SOT23-3L
DTA113ZCA	/	/	E11	PNP	200	-100	-50	33	-0.3	1	10	250	SOT-23
DTA114EE	/	/	14	PNP	150	-100	-50	30	-0.3	10	1	250	SOT-523
DTA114EUA	/	/	14	PNP	200	-100	-50	30	-0.3	10	1	250	SOT-323
DTA11EKA	/	/	14	PNP	200	-100	-50	30	-0.3	10	1	250	SOT23-3L
DTA114ECA	/	/	14	PNP	200	-100	-50	30	-0.3	10	1	250	SOT-23
DTA114YE	/	/	54	PNP	150	-70	-50	68	-0.3	10	4.7	250	SOT-523
DTA114YUA	/	/	54	PNP	200	-70	-50	68	-0.3	10	4.7	250	SOT-323
DTA114YKA	/	/	54	PNP	200	-70	-50	68	-0.3	10	4.7	250	SOT23-3L
DTA114YCA	/	/	54	PNP	200	-70	-50	68	-0.3	10	4.7	250	SOT-23
DTA123JE	/	/	E32	PNP	150	-100	-50	80	-0.3	2.2	21	250	SOT-523
DTA123JUA	/	/	E32	PNP	200	-100	-50	80	-0.3	2.2	21	250	SOT-323
DTA123JKA	/	/	E32	PNP	200	-100	-50	80	-0.3	2.2	21	250	SOT23-3L
DTA123JCA	/	/	E32	PNP	200	-100	-50	80	-0.3	2.2	21	250	SOT-23
DTA143EE	/	/	13	PNP	150	-100	-50	30	-0.3	4.7	1	250	SOT-523
DTA143EUA	/	/	13	PNP	200	-100	-50	30	-0.3	4.7	1	250	SOT-323
DTA143EKA	/	/	13	PNP	200	-100	-50	30	-0.3	4.7	1	250	SOT23-3L
DTA143ECA	/	/	13	PNP	200	-100	-50	30	-0.3	4.7	1	250	SOT-23
DTA143ZE	/	/	E13	PNP	150	-100	-50	80	-0.3	4.7	10	250	SOT-523
DTA143ZUA	/	/	113	PNP	200	-100	-50	80	-0.3	4.7	10	250	SOT-323
DTA143ZKA	/	/	E13	PNP	200	-100	-50	80	-0.3	4.7	10	250	SOT23-3L
DTA143ZCA	/	/	E13	PNP	200	-100	-50	80	-0.3	4.7	10	250	SOT-23
DTA144EM	/	/	16	PNP	100	-100	-50	68	-0.3	47	1	250	SOT-723
DTA144EE	/	/	16	PNP	150	-100	-50	68	-0.3	47	1	250	SOT-523
DTA144EUA	/	/	16	PNP	200	-100	-50	68	-0.3	47	1	250	SOT-323
DTA144EKA	/	/	16	PNP	200	-100	-50	68	-0.3	47	1	250	SOT23-3L
DTA144ECA	/	/	16	PNP	200	-100	-50	68	-0.3	47	1	250	SOT-23
DTC114EE	/	/	24	NPN	150	50	50	30	0.3	7	13	250	SOT-523
DTC124EE	/	/	25	NPN	150	30	50	56	0.3	15.4	28.6	250	SOT-523
DTC143EE	/	/	23	NPN	150	100	50	20	0.3	3.29	6.11	250	SOT-523
DTC144EE	/	/	26	NPN	150	30	50	68	0.3	32.9	61.1	250	SOT-523
DTC114EE	/	/	24	NPN	150	50	50	30	0.3	10	1	250	SOT-523
DTC114EUA	/	/	24	NPN	200	50	50	30	0.3	10	1	250	SOT-323
DTC114EKA	/	/	24	NPN	200	50	50	30	0.3	10	1	250	SOT23-3L
DTC114ECA	/	/	24	NPN	200	50	50	30	0.3	10	1	250	SOT-23
DTC123EE	/	/	22	NPN	150	100	50	20	0.3	2.2	1	250	SOT-523
DTC123EUA	/	/	22	NPN	200	100	50	20	0.3	2.2	1	250	SOT-323
DTC123EKA	/	/	22	NPN	200	100	50	20	0.3	2.2	1	250	SOT23-3L
DTC123ECA	/	/	22	NPN	200	100	50	20	0.3	2.2	1	250	SOT-23
DTC123JE	/	/	E42	NPN	150	100	50	80	0.3	2.2	21	250	SOT-523
DTC123JUA	/	/	E42	NPN	200	100	50	80	0.3	2.2	21	250	SOT-323
DTC123JKA	/	/	E42	NPN	200	100	50	80	0.3	2.2	21	250	SOT23-3L
DTC123JCA	/	/	E42	NPN	200	100	50	80	0.3	2.2	21	250	SOT-23
DTC123YE	/	/	62	NPN	150	100	50	33	0.3	2.2	4.5	250	SOT-523
DTC123YUA	/	/	62	NPN	200	100	50	33	0.3	2.2	4.5	250	SOT-323
DTC123YCA	/	/	62	NPN	200	100	50	33	0.3	2.2	4.5	250	SOT23-3L
DTC12ЗYKA	/	/	62	NPN	200	100	50	33	0.3	2.2	4.5	250	SOT-23
DTC143EE	/	/	23	NPN	150	100	50	20	0.3	4.7	1	250	SOT-523
DTC143EUA	/	/	23	NPN	200	100	50	20	0.3	4.7	1	250	SOT-323
DTC143EKA	/	/	23	NPN	200	100	50	20	0.3	4.7	1	250	SOT23-3L
DTC143ECA	/	/	23	NPN	200	100	50	20	0.3	4.7	1	250	SOT-23
DTC143XE	/	/	43	NPN	150	100	50	30	0.3	4.7	2.1	250	SOT-523
DTC143XUA	/	/	43	NPN	200	100	50	30	0.3	4.7	2.1	250	SOT-323
DTC143XKA	/	/	43	NPN	200	100	50	30	0.3	4.7	2.1	250	SOT23-3L
DTC143XCA	/	/	43	NPN	200	100	50	30	0.3	4.7	2.1	250	SOT-23
DTC143ZE	/	/	E23	NPN	150	100	50	80	1.3	4.7	10	250	SOT-523
DTC144EE	/	/	26	NPN	150	30	50	68	0.3	47	1	250	SOT-523
DTC144EUA	/	/	26	NPN	200	30	50	68	0.3	47	1	250	SOT-323
DTC144EKA	/	/	26	NPN	200	30	50	68	0.3	47	1	250	SOT23-3L
DTC144ECA	/	/	26	NPN	200	30	50	68	0.3	47	1	250	SOT-23
DTC144EM	/	/	26	NPN	100	30	50	68	0.3	47	1	250	SOT-723
BD675	/	/	BD675	NPN	40000	400	45	750	2.5	0	0	250	TO-126
BD675A	/	/	BD675A	NPN	40000	400	45	750	2.5	0	0	250	TO-126
BD676	/	/	BD676	PNP	40000	400	-45	750	2.5	0	0	250	TO-126
BD676A	/	/	BD676A	PNP	40000	400	-45	750	2.5	0	0	250	TO-126
BD677	/	/	BD677	NPN	40000	400	60	750	2.5	0	0	250	TO-126
DTC114ECA	/	/	DTC114ECA	NPN	200	50	50	30	0.3	10	10	250	SOT-23
DTC143ECA	/	/	DTC143ECA	NPN	200	100	50	20	0.3	4.7	4.7	250	SOT-23
BCR135	/	/	WJ	NPN	200	100	6	2	1.4	10	21	150	SOT-23
BCR533	/	/	XC	NPN	215	500	10	2	1.4	10	1	100	SOT-23
DTC123ECA	/	/	DTC123ECA	NPN	200	100	50	20	0.3	2.2	2.2	250	SOT-23
BD682	/	/	BD682	PNP	40000	400	-100	750	2.5	0	0	250	TO-126
