What is a fast recovery diode? The basic structure, characteristics, principles, applications, installation, fault analysis, and development history of fast recovery diodes 3

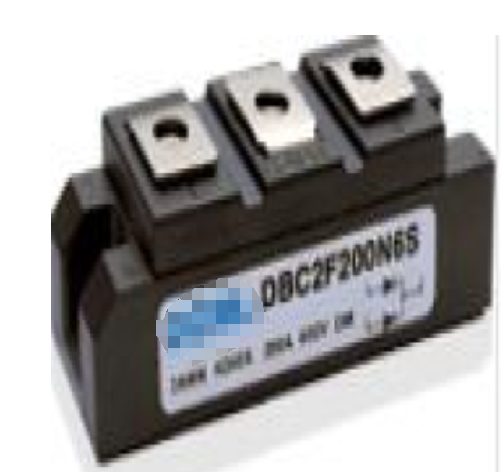

5、 Installation:

The installation of fast recovery diodes should consider the following factors:

1. Polarity: Ensure the correct polarity connection of the diodes, usually with the anode marked with a ring or arrow.

2. Heat dissipation: Due to the generation of heat during the switching process, appropriate heat sinks or fins should be used, and good ventilation should be ensured.

3. Mechanical installation: Ensure that the diodes is securely installed to avoid physical damage caused by vibration or impact.

4. Electrical isolation: If necessary, use insulation gaskets and sleeves to isolate the metal parts of the diode to prevent short circuits.

5. Anti static: Take anti-static measures during installation, as static electricity may damage semiconductor materials.

6、 Fault analysis:

Fault analysis usually involves the following aspects:

1. Forward conduction fault: If the diodes cannot conduct under forward bias, it may be due to internal structural damage or solder joint failure.

2. Excessive reverse leakage current: If the leakage current of the diode exceeds the specification during reverse bias, it may be due to internal breakdown or surface contamination of the diodes.

3. Extended reverse recovery time: If the reverse recovery time of a diodes is longer than normal, it may be due to device aging or overheating damage.

4. Thermal runaway: When operating at high temperatures, if there is insufficient heat dissipation, the diodes may overheat, resulting in decreased performance or even burnout.
