The origin of the name Bu508A transistor

This is the unified naming convention for transistors by the International Semiconductor Federation: B represents silicon material; U represents high-power switching transistor. 508 is the product registration number (indicating its parameters); A is his level code (for the same type of transistors, a certain parameter is used to distinguish between different levels). In short, there are various naming conventions for transistors, including domestic and European and American ones. Japanese and so on, currently the most widely used ones are Japanese, with less in Europe and America, and even fewer domestically produced ones.

Category: Discrete Semiconductor Products

Home: Transistor (BJT) - Single Channel

Transistor type: NPN

Current collector (Ic) (maximum): 8A

Voltage collector emitter breakdown (maximum): 700Vd788d43f8794a4c2ff5c9e510df41bd5ad6e3948.jpg

Vce saturation under Ib and Ic conditions (maximum): 1V @ 2A, 4.5A

Current collector cutoff (maximum): 1mA

Minimum DC current gain (hFE) at certain Ic and Vce:- transistors

Power - Maximum: 125W

Frequency conversion: 7MHz

Installation type: through-hole  transistors

Transistor polarity: NPN

Power consumption (Pd): 125

Collector base breakdown voltage (Ucb): 1500

Collector emitter breakdown voltage (Uce): 700

Emitter base breakdown voltage (Ueb): 0

Maximum collector current (Ic): 8

Maximum working temperature (Tj), ° C: 150

Maximum operating frequency (ft): 7

Output capacitance (Cc), pF: 125

DC current gain (hfe): 10

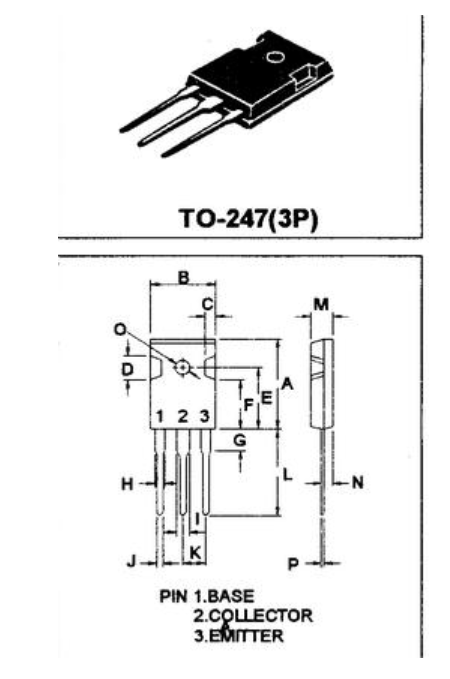

transistors packaging type: TOP3
